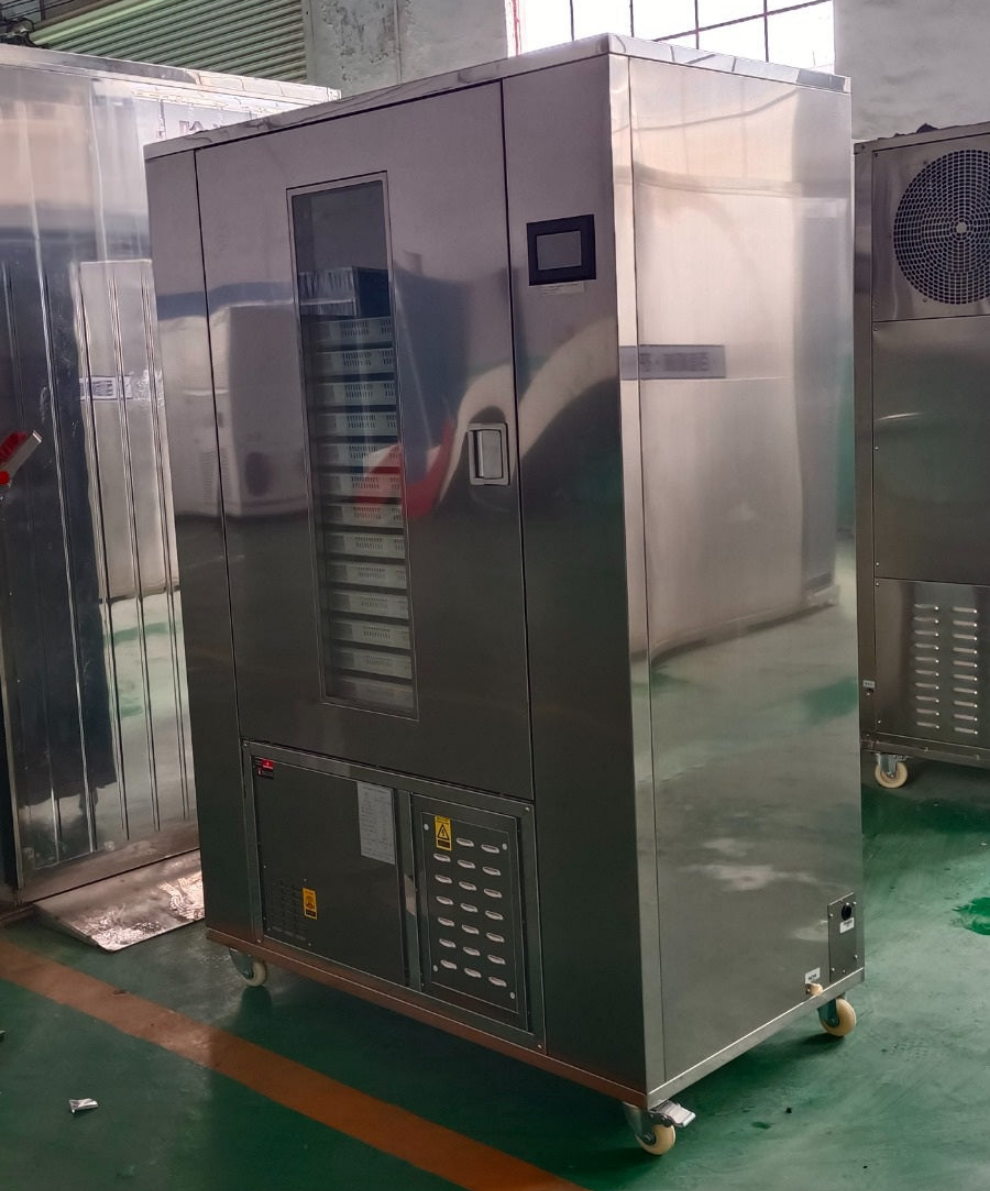

BX-1P Heat Pump Dryer Machine - 3-4 kg/h Capacity - Commercial

The 1P Heat Pump Dryer Machine is a versatile, energy-efficient drying solution tailored for agriculture, food, pharmaceutical, and chemical industries. Utilizing advanced heat pump technology, it offers consistent, low-energy drying that maintains the quality of dried materials. Crafted from stainless steel 304, this dryer is durable, rust-resistant, and food-grade safe, making it an essential tool for industries that prioritize product quality and safety.

Key Features:

• Dimensions: 700mm (W) * 1880mm (D) * 1280mm (H)

• Power and Efficiency: Operating at only 1.0 kW with a 4 kW output, this machine saves up to 75% on energy costs. Consuming 1 kWh per hour, it can dehydrate approximately 3.5 kg of moisture per hour.

• Capacity and Tray Design: Equipped with 15 food-grade PVC trays (800mm x 600mm x 50mm each), the machine can hold up to 6 kg per tray, offering high-capacity, even drying across multiple levels for industrial-scale use.

Ideal for Drying:

• Agricultural Products: Efficiently dries fruits like apples, mangoes, and bananas, vegetables such as tomatoes, peppers, and onions, and herbs and spices while preserving flavor, nutrients, and texture.

• Food Products: Provides even, dust-free drying for meats and fish (ideal for jerky or dried seafood), dairy powders, grains, and bakery items, producing high-quality, long-lasting results.

• Medicinal Herbs & Botanicals: Perfect for drying herbal medicine ingredients, botanicals, and tea leaves, preserving medicinal properties and potency for use in teas, supplements, and other health products.

• Industrial & Chemical Products: Suitable for drying non-reactive chemicals, natural dyes, and cosmetic ingredients that require controlled moisture levels and stable drying conditions.

• Pharmaceutical Products: Ideal for dehydrating active ingredients in pharmaceuticals, herbal supplements, and health products, ensuring that compounds retain their effectiveness.

• Specialty & Other Products: Dries craft materials, pet foods, and snacks, enhancing shelf life and quality for a variety of specialty applications.

Temperature Control and Operation:

The dryer operates in a temperature range of 45°C to 75°C with an output air temperature of 60°C. The PLC Intelligent Control Panel provides precise settings for temperature, humidity, and drying stages, making it versatile for various materials and conditions.

Advanced Drying Technology:

Employing the Inverse Carnot Cycle principle, this machine maximizes energy efficiency through controlled heat exchange:

1. Heat Absorption: Low-temperature air is absorbed from the surroundings.
2. Compression: The absorbed heat is compressed to increase its temperature.
3. Condensation and Heat Release: The heated gas condenses in a chamber, releasing heat in the drying chamber.
4. Material Heating and Vaporization: High-temperature air circulates, evaporating moisture from the materials.
5. Moisture Removal: A dehumidification system ensures balanced drying, consistently removing moisture without manual turning.

Benefits:

• Energy Efficiency: Uses just 1 kW of power for a 4 kW drying output, reducing costs and environmental impact.
• Uniform Drying: Even heat distribution eliminates the need for manual rotation, optimizing batch drying.
• Quality Preservation: Low-temperature drying retains nutrients, flavors, textures, and active compounds in delicate materials.
• Hygienic, Closed Design: The sealed structure prevents dust, ensuring a clean and safe drying environment.
• Remote Monitoring and Control: The PLC control panel allows remote operation adjustments, enhancing convenience and precision.

Specifications:

• Voltage Requirement: 220V-50Hz, Single Phase
• Rated Power: 1.0 kW
• Dehydration Capacity: 3-4 kg/hour
• Material Composition: Stainless Steel 304
• Tray Material: Food-grade PVC
• Tray Dimensions: 800mm x 600mm x 50mm
• Total Trays: 15

Additional Details:

• Portability: Includes durable wheels, making it easy to move within production facilities.
• Long Service Life: Built for 10-15 years of operation with minimal maintenance, thanks to high-quality materials and components.
